This tutorial features a set of 105 science images of the High Amplitude Delta Scuti (HADS) star FS CMi. HADS stars belong to the Delta Scuti class of variable stars. They are characterized by high amplitude brightness variations caused by pulsations in the star. Brightness variations typically occur on timescales of a few hours.


To download the tutorial files, navigate to the Help menu, choose Tutorial. Phoranso offers two download methods; both contain identical contents, so you may choose whichever you prefer. When in doubt, select From Google Drive.


Option 1: Download from Google Drive


  1. Choose From Google Drive to download the Tutorial files directly from an external Google Drive repository.

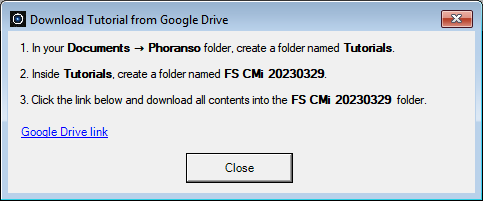

  1. Follow the instructions shown in the dialog box. Open your Documents folder and navigate to the Phoranso directory. Inside it, create a new folder named Tutorials. Then, inside that Tutorials folder, create a folder named FS CMi 20230329

    Next, click the Google Drive link in the dialog box. This will open your web browser and take you to a Google Drive location containing all required Tutorial files.

  2. Download the entire contents of that Google Drive folder into your newly created FS CMi 20230329 folder.

  3. When finished, the contents of your Tutorials folder should match the structure shown in the figure at the bottom of this section. You can then close the dialog box.



Option 2: Download from FTP server

  1. Choose From FTS server to open the below dialog box, facilitating the download of the Tutorial files.



  2. Initiate the download process by clicking Start. The duration may vary based on your Internet connection speed, and progress will be visually indicated through the progress bar. If needed, you can interrupt the download by selecting Abort.

  3. Upon successful completion, the Tutorial files will be stored in the Tutorials subfolder within  your Phoranso Documents directory.



Your Tutorials subfolder should resemble the following structure. In the CalibrationGroupFiles subfolder are 13 master calibration files, and in the FS CMi 20230329 subfolder is a Sciences folder with 105 science FITS images.




Proceed to step 3 of the tutorial.
