Exoplanet Observations in 2007
obtained at CBA Belgium Observatory


Below is a sample of my Exoplanet observations made in 2007.


GJ 176

A possible transit of GJ 176 was predicted on 15 Sep 2007. I made R-band photometric observations around the expected egress time, but as the light curve below shows, there was no sign of a transit down to 2 mmag.



GJ 436b

First ever amateur transit observations of exoplanet GJ 436 b in May 2007


XO-2b

Co-discovery of exoplanet X0-2b in May 2007


XO-3b

Co-discovery of the transiting exoplanet XO-3b


TrES-3b




TrES-4b




WASP-1b

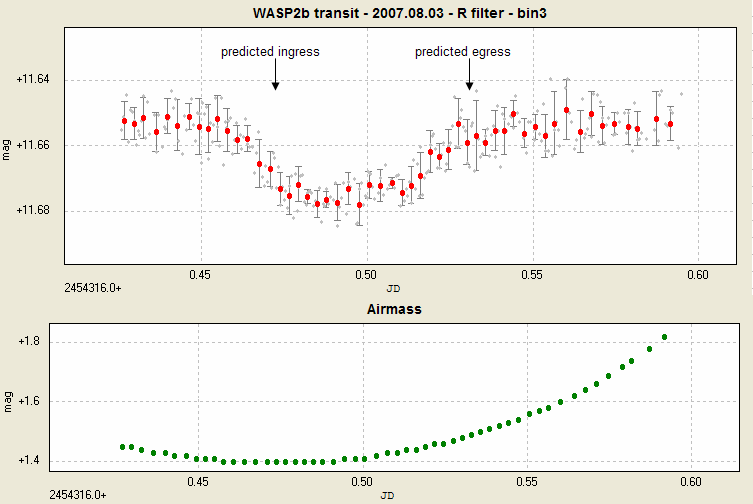

WASP-2b



HAT-P-1b


Ingress and egress of HAT-P-1b were early by approx. 15 minutes compared to the ephemeris elements published in the HAT-P-1 discovery paper. I'm not completely satisfied with the photometric accuracy. I guess that my observations did suffer from not using a filter (I was using my other telescope with filterwheel on a different target that evening).

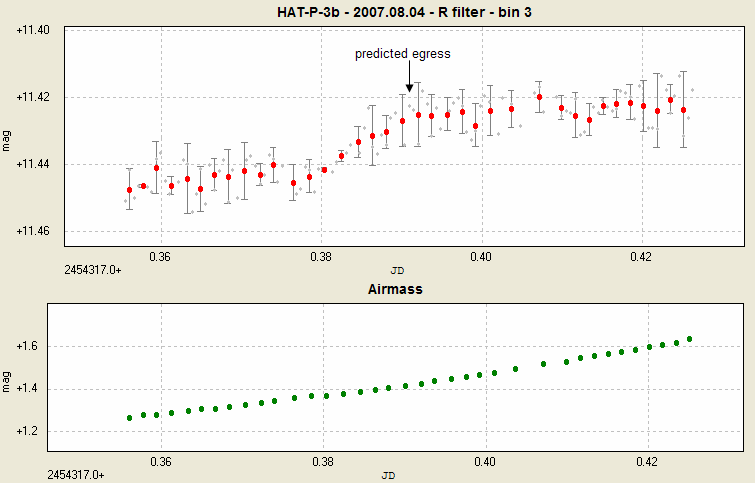

HAT-P-3b




HAT-P-4b

First ever amateur transit observations of exoplanet HAT-P-4b in October 2007




HAT-P-5b

First ever amateur (partial) transit observations of exoplanet HAT-P-5b in October 2007
